Automatic filling machine line, wine filling production line

Automatic filling machine line, Wine filling production machineproduct phototechnical parametersModelTechnical ParameterFilling HeadsOutputBottle HeightBottle Dia.Filling TolerancePowerDimension     pcsbottles/hourmmmmmlkwmmGCP-12A123000140-340≤100±0.5%0.751100x1050x2100GCP-18A1845000.751280x11

Featured Products

Automatic filling machine line, Wine filling production machine

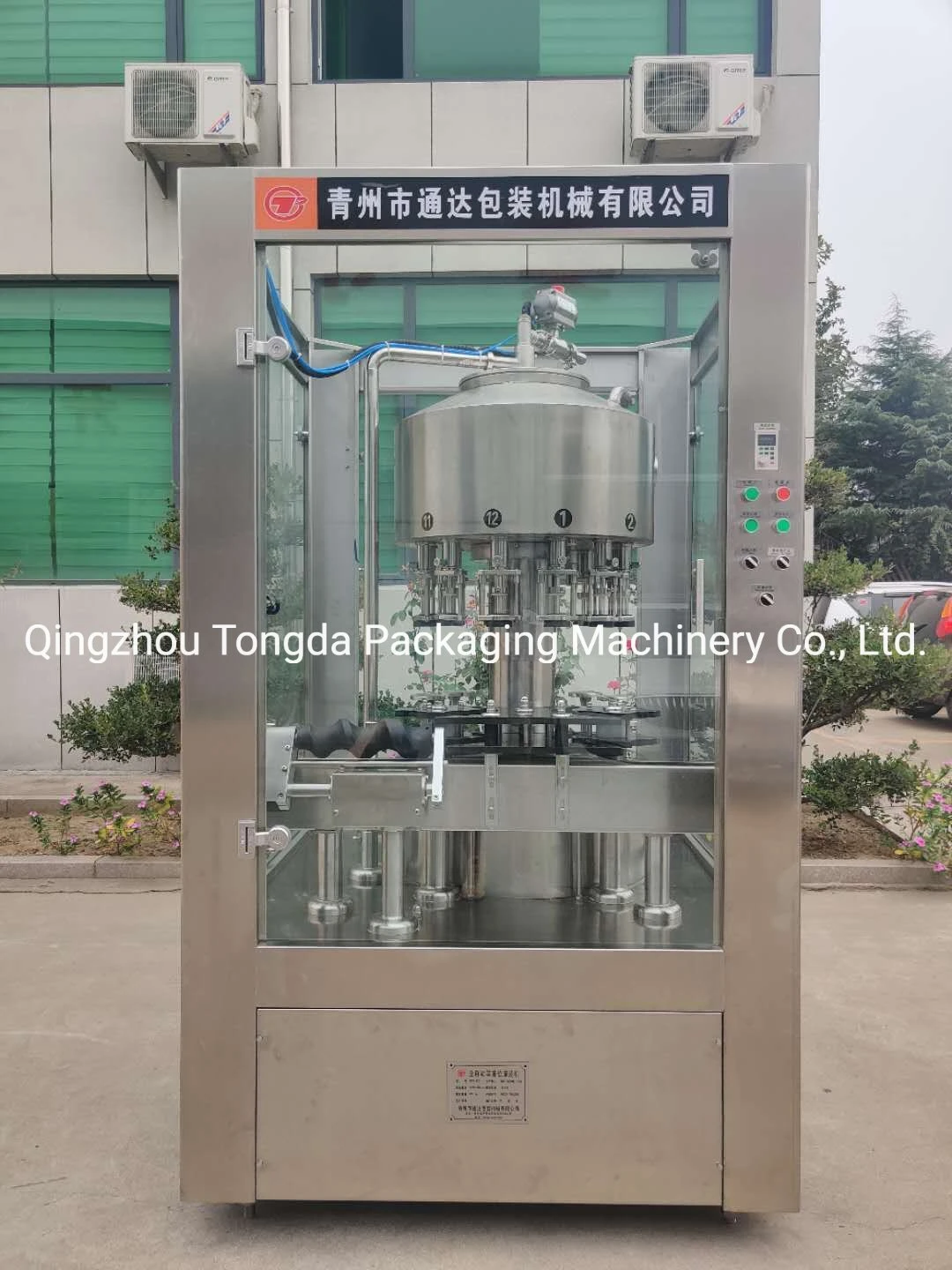

product photo

Automatic Filling Machine Line, Wine Filling Production Machine
technical parameters

ModelTechnical Parameter
Filling HeadsOutputBottle HeightBottle Dia.Filling TolerancePowerDimension
pcsbottles/hourmmmmmlkwmm
GCP-12A123000140-340≤100±0.5%0.751100x1050x2100
GCP-18A1845000.751280x1180x2100
GCP-24A2460001.51700x1450x2100
GCP-30A3080001.51900x2000x2100
GCP-36A36100002.22300x2150x2100
GCP-40A40120002.22300x2300x2100
GCP-48A481400032600x2700x2100
GCP-60A601600033300x3300x2200

main features

1. Level Positioning filling:it fills based on the liquid pressure difference.It is an avoidance of foaming when filling.

2. Long Life:the filling valve has the precise structure, reliable and durable.

3. Filling in a spraying way:the liquid flows along the inner wall of the bottle, which effectively controls foaming.

4. A small loss of the bottles:it has the elastic bottle hold to protect bottles not be broken.

5. Not filling if no bottles:it does not fill if there is no bottle or the bottle mouth is broken, which enhance the filling quality.

6. Convenient to maintain:the filling valve is easy to disassemble and clean. Description of the machine:this equipment is mainly used the level positioning filling for easy-foaming liquid such as red wine,yellow wine,soy sauce and vinegar etc.

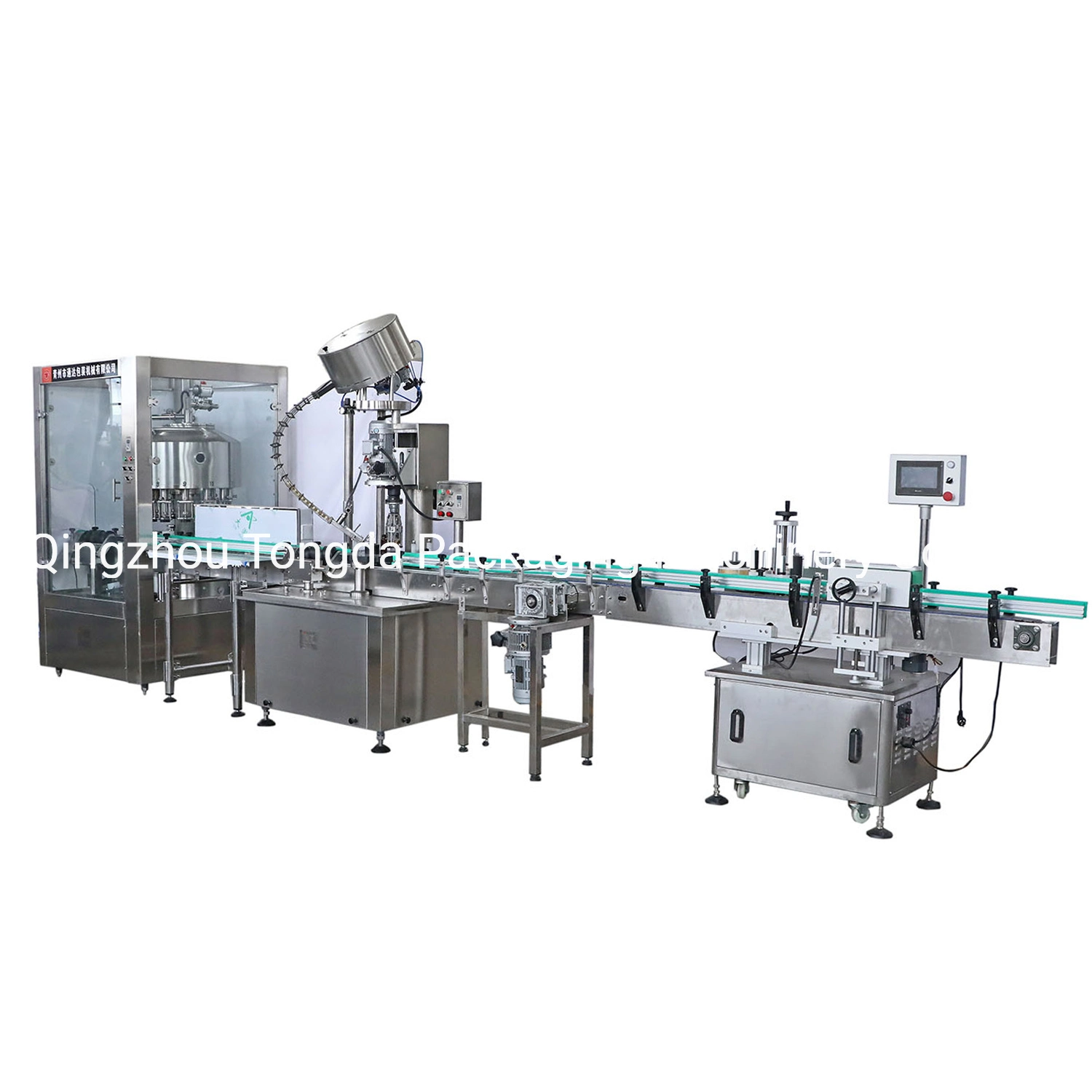

 what you need to tell us (for a whole set filling line)

1. bottle dimension and bottle material

2. cap dimension and cap type

3. drink kind (water, wine, beverage, oil...?)

4. production capacity

5. label dimension and label material

6. packing type and packing material

7. workshop size

8. other requirement

about us

We mainly manufacture non-carbonated liquid bottling line, our bottling equipments are mainly used for white spirit, grape wine, fruit wine, vinegar, soy sauce, cooking oil, enzyme, juice, non-carbonated drink, honey, syrup, tomato sauce, fruit jam, engine oil, lubricating oil...our bottling equipments mainly include bottle loading table, bottle washing machine, bottle filling machine, bottle capping machine, bottle sterilization machine, bottle drying machine, bottle labeling machine, inkjet printer, laser coder, tape carton sealing machine...
