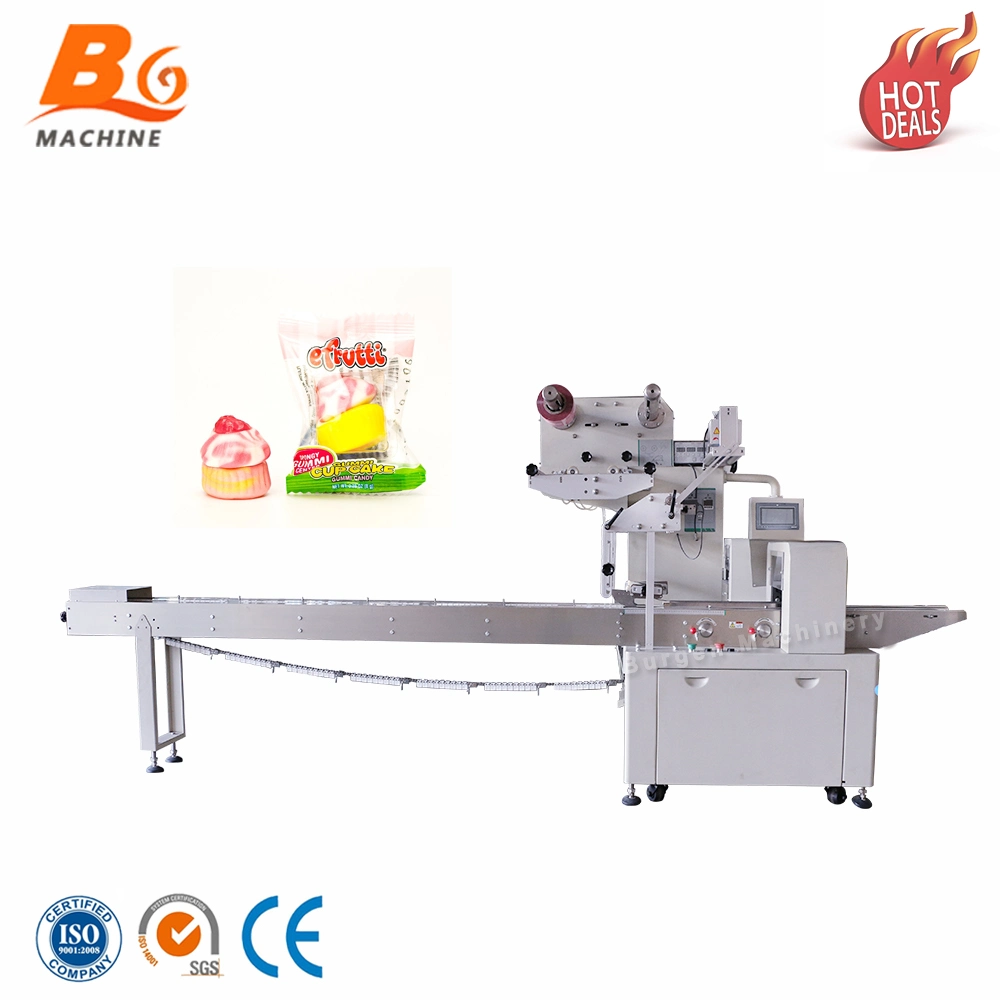

Horizontal Packing Machine Feature
1. Intelligent dual-frequency control, which can save time and film by setting the bag length, speed and cutting through the screen.2. Fault self-diagnosis function, the fault display is clear at a glance, the positioning stop function, no sticking knife, no waste film.
3. Temperature independent PID control, more suitable for packaging different materials.
Scope of application
Food : cake, bread, meat muffin, flaky pastry,biscuits, green bean cake, several sausage in a bag, noodles, beef jerky, egg roll, etcHardwares : hinge, stainless steel pipe, bearings , screw,nuts and washer, etc
Hotel supplies : Soap, disposable comb, tooth paste and brush in one set.
Stationery : pencil, eraser, notebook, paper card, adhensive tape
Electric products : battery, usb cable, earphone, user manual and accessories in one set.
Medical : mask, glove, gauze, capsule.
Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, bottles, napkin etc.
MACHINE DETAILS
1 | 2 |
Bag Former 1.Prevent film deviation 2.Double-membrane device, automatic replacement roll of film | Touch Screen 1.Multilingual Settings 2.Interface features easy and quick setting and operation. 3.Self failure diagnosis, clear failure display. |
3 | 4 |
Sensor/ Electric Eye High-sensitivity photoelectric eye color drag, cutting the digital input of the sealed position, providing higher precision. | Bag making Make the product packaging more beautiful |
5 | 6 |
Cutter 1.No deformation, long life 2.Suitable for a variety of pocket cuts | Feeding platform 1.304 stainless steel is corrosion resistant 2.Compliance with food safety |
Technical Parameters
Type | BG-250SZ | BG-320SZ | BG-350SZ | BG-400SZ |
Film width | Max.250mm | Max.320mm | Max.350mm | Max.400mm |
Bag Length | 65-280MM | 65-330MM | 65-330MM | 150-400MM |
Bag Wide | 30-110mm | 50-150mm | 50-160mm | 50-180mm |
Products High | Max.55mm | Max.55mm | Max.60mm | Max.65mm |
Packing Speed | 40-330bag/min | 40-230bag/min | 40-180bag/min | 30-150bag/min |
Powder | 220v 50/60HZ 2.4kw | 200v 50/60HZ 2.6kw | 220v 50/60Hz 2.6kw | 220v 50/60HZ 2.8kw |
Machine Size(mm) | 3770x680x1420 | 3770x720x1420 | 4020x770x1420 | 4020x770x1420 |
Machine weighing | 440kg | 480kg | 580kg | 600kg |
Pouch Features Or Options
Production Date Printing | Easy To Tear | perforate |
Fill nitrogen | Even bag |
Our professional services:
Pre-sale service:
1.We will provide the best service in sales. 2.Provide professional packaging videos that let you directly experience our machines. 3.According to the special requirements of customers, provide reasonable solutions and free design to help select equipment.
Services during sales:
1.Design any special packaging custom packaging machine. 2.Sample testing support. 3.Welcome to visit our factory.
After sales service:
1.Machine installation, adjustment, setup, maintenance management / manual (Chinese and English version) / video is available for you to display the packaging machine installation process. 2.We provide installation training free of charge at the factory. 3.We has an independent after-sales service team. In any emergency, please contact the salesperson or our after-sales manager for 24-hour face-to-face communication via telecommunications or online; 4.Machine warranty period: 1 year (electrical accessories) and lifetime free maintenance (excluding shipping) We guarantee that all machines maintain good quality and efficien
