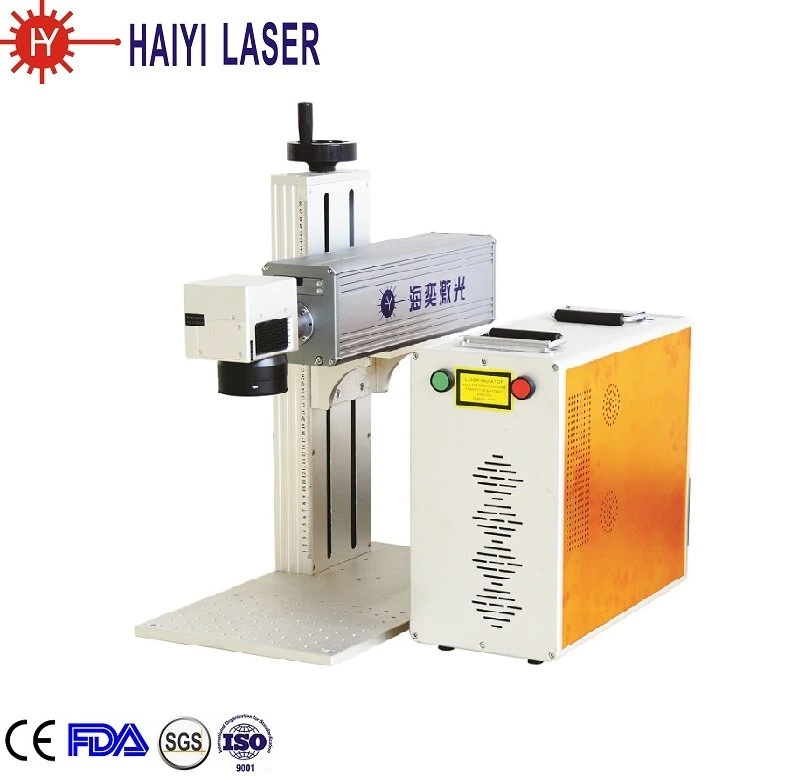

Color Picture Character Mopa Fiber Engraving Machine/Fiber Laser Engraving Machine 30W

 Desktop CNC Fiber Laser Marking Machine 1.PRODUCT DESCRIPTION :The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine\'s anti-reflection ability with optical isolator, be able to mark on most high reflective

Featured Products

 Desktop CNC Fiber Laser Marking Machine
1.PRODUCT DESCRIPTION :




Color Picture Character Mopa Optical Fiber Engraving Machine / Optical Fiber Laser Engraving Machine 30W
Color Picture Character Mopa Optical Fiber Engraving Machine / Optical Fiber Laser Engraving Machine 30W







The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine's anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.



2. APPLICATION :
 It is widely used for precision instruments, computer keyboards,auto parts, plumbing parts
communications equipment, medical equipment, bathroom equipment,hardware tools, luggage decoration,electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard,buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.
Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business,cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising,logo.




Color Picture Character Mopa Optical Fiber Engraving Machine / Optical Fiber Laser Engraving Machine 30W





3.SPECIFICATION :

ModelHY-MF01
Laser Power50W/60W/100W
Laser Wavelength1064nm
Laser Frenquency20-80HZ
Standard Marking range110mm*110mm,180mm*180mm
Support FomartPLT,DFX,DST,AI,SDT,JPG,BMP,JPEG,GIF,TGA,
PNG,TIF,TIFF,CAD,

CDR, DWG etc.
Cooling Method Air Cooling
Option Marking range300mm*300mm/400mm*400mm
Marking Depth<=0.3mm
Marking Speed<=7000mm/s
Minimum line width0.01mm
Repeatability accuracy±0.002mm
Electricity requirement220V/50Hz/60Hz/2A
the whole Power consumption500W
4.Advangtages :

1) Non- contact marking: Laser marking is processed to non- mechanical "knife", can be marked on the printing surface of any regular or irregular, and marking the workpiece does not produce internal stress,ensuring the accuracy of the workpiece. No corrosion on the work surface, no "tool" wear, no poison, no pollution.
2). Permanent: The markings will not subsided for the environmental relations (touch, acid and reducing gases, high temperature, low  temperature, etc.)
3). High engraving precision: laser marking machine engraving items, fine lines, minimum line width of up to 0.04mm. The markings are clear, durable and beautiful. Laser marking can meet the needs of printing large quantities of data on minimal plastic parts. For example, we can print two-dimensional barcode with higher precision and higher definition, and have stronger market competitiveness compared with the way of stamping or marking.
4). The running cost is low: the marking speed is fast and the mark is formed at once, and the energy consumption is small, so the running cost is low. Although the laser marking machine has more equipment investment than the traditional marking equipment, it is much lower from the running cost and longer lifetime.
5). High Efficiency: The laser beam controlled by the computer can move at high speed (5~7 meters per second), and the marking process can be completed in a few seconds.6). Anti-fake: laser marking technology, carved out of the mark is not easy to imitate and change, to a certain extent, has a strong anti-fake.

5. OUR SERVICE :
1.  1 year Guarantee  for the whole machine.
2. 12 months Guarantee and free spare parts supply during this period.
3. 24 hours on line service
4. 3-7 days lead time
5. We will provide the Instruction Book, Operational manual and Training Video
6. Provide technical support for the whole lifetime on line
7. TT/Ali Trade Assurance payment
8. Shipping By air, DHL, Sea.
6.ABOUT US :
Color Picture Character Mopa Optical Fiber Engraving Machine / Optical Fiber Laser Engraving Machine 30W
Color Picture Character Mopa Optical Fiber Engraving Machine / Optical Fiber Laser Engraving Machine 30W
Color Picture Character Mopa Optical Fiber Engraving Machine / Optical Fiber Laser Engraving Machine 30W
Color Picture Character Mopa Optical Fiber Engraving Machine / Optical Fiber Laser Engraving Machine 30W
Color Picture Character Mopa Optical Fiber Engraving Machine / Optical Fiber Laser Engraving Machine 30W
Color Picture Character Mopa Optical Fiber Engraving Machine / Optical Fiber Laser Engraving Machine 30W

Color Picture Character Mopa Optical Fiber Engraving Machine / Optical Fiber Laser Engraving Machine 30W
7.FAQ:

Q1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.

Q2. How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.
For the non-standard machine, the delivery time is 7-15 days after the payment.

Q3. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.
We also can provide the training on line by free.

Q4. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.
phone, or video communication.

Q5. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training
course in our company.

Q6. Do you provide the onsite service if we needed?
Yes. We can provide the onsite service if you needed. But need the customer pay for the transport, hotel, food and 60USD/day.
