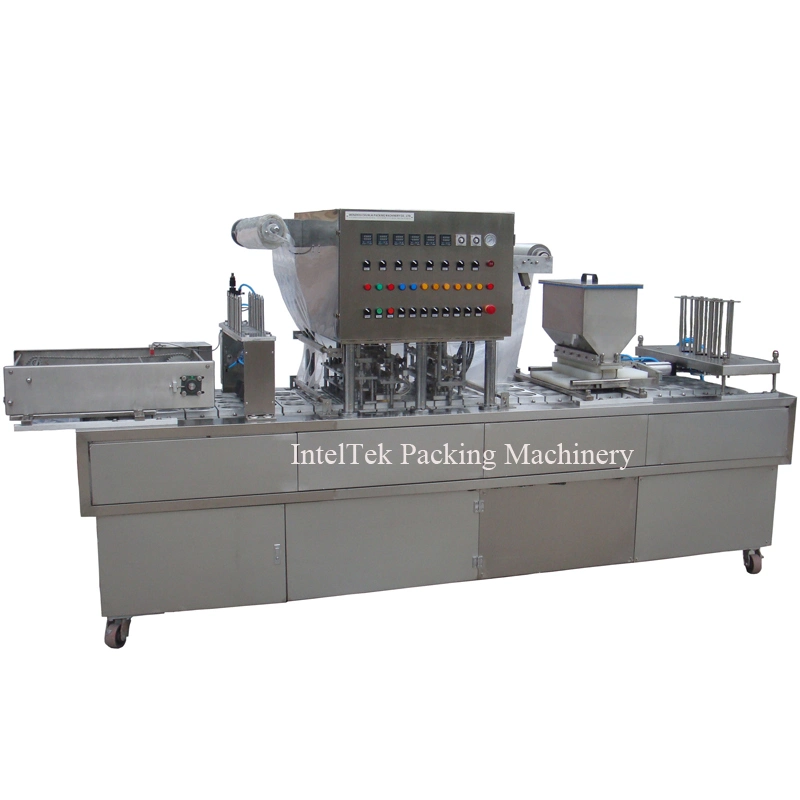

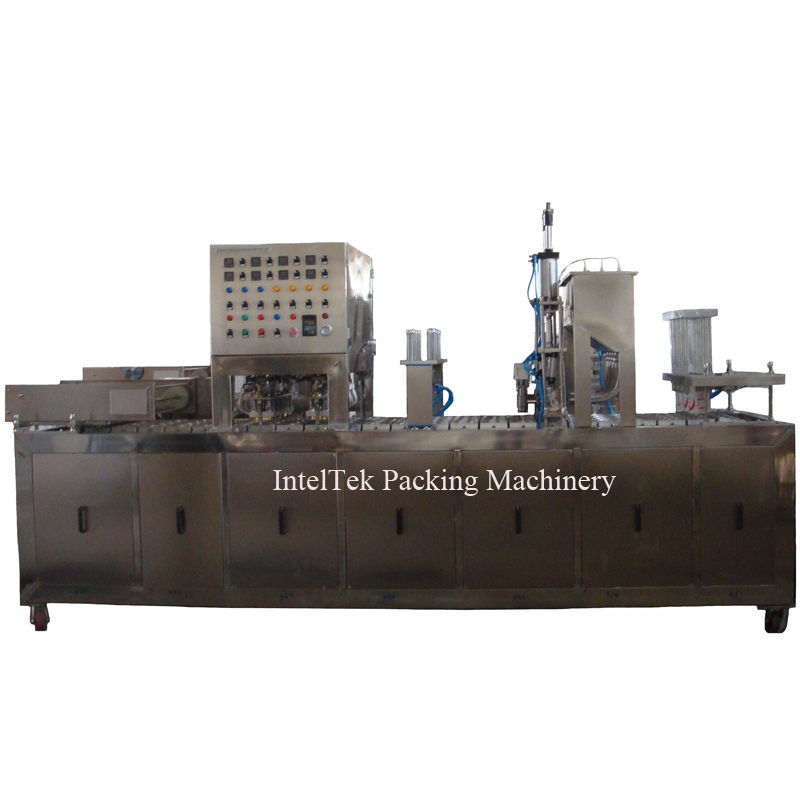

BG60A--4C automatic cup fill-seal-cut machine adopts the way of pneumatic type interval operation and electric apparatus adopts Japan Omron programmable controller, this machine has function as automatic bowl dropping, filling, printing, sterilizing, photocell, twice sealing, tooth-shape cutting and the waste material recovering ext. This machine use digital temperature controller, and the error of temperature is less than 1%. This machine is stainless steel shell and high sealing quality.
Main Function:
1. Automatic bowl drop
2. Automatic fill rice
3. Automatic fill lotus seed and so on
4. Automatic fill water
5. UV sterilization
6. Photocell
7. Twice sealing
8. Automatic cutting and wasted film recyle
9. Automatic bowl exit
Technology Parameter
| Production Capacity | 3000-4000cups/hour (special order optional) |
| filling | 100ml--450ml (special order optional) |
| power | 4 kw |
| air consumption | 0.8 M 3 /min |
| voltage | 380V 50HZ |
| dimension | 3500mm*900mm*1650mm |
| weight | 1200 kg |
Packing&Shipping
Package: wooden case
Shipping: by sea
Our Services
Direct after-sales service
Company Information
WENZHOU INTELTEK IMPORT & EXPORT CO., LTD
ADD: ROOM 403, SHUSHENG BUILDING 1, NANPU, LUCHENG DISTRICT, WENZHOU
FAQ
1.How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
2.Why choose our company?
We are the Chinese leading packaging machinery manufacturers.
Alibaba Assessed Gold Supplier
100% QC inspection before shipment.
The best quality and best service, competitive price.
