Specification

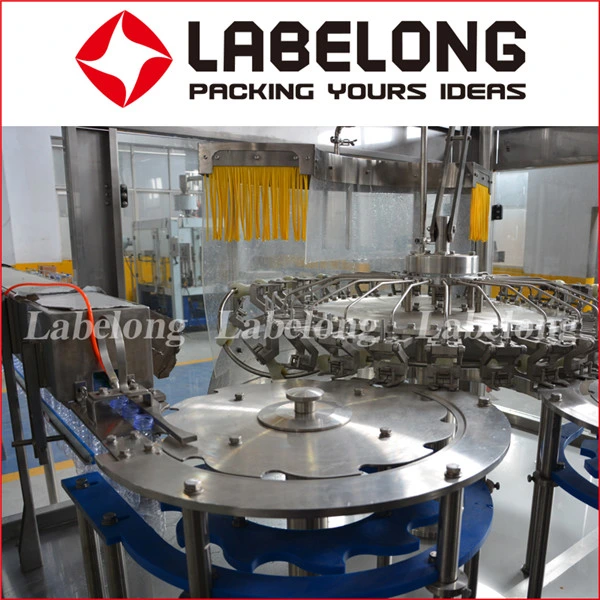

Water Filling Machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum. The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage makers
Technical data
Model | RFC-W16-16-5 | RFC-W24-24-8 | RFC-W32-32-8 | RFC-W40-40-10 |
Washing,-Filling-Capping | 16-16-5 | 24-24-8 | 32-32-8 | 40-40-10 |
Producing capacity (600ml) | 8000 (bph) | 10000 (bph) | 12000 (bph) | 15000 (bph) |
Suitable bottle size(mm) | φ=50-108 H=170-340 330ml-2.25L | |||
Pressure (kg/cm²) | 2~3 | |||
Outside vacuum pump power (kw) | Main motor 3.12kw | Main motor 3.92kw | Main motor 3.92kw | Main motor 5.87kw |
Overall dimension (mm) (LxWxH) | 2760*2060*2700 | 2800*2230*2700 | 3550*2650*2700 | 4700*3320*2700 |
Packaging&Shipping:
Packing: Standard export wooden case confirmtion inan early date.
Delivery Time: 45days after confirming order detail delivery date should be decided according to production season and order quantity.
Cooperation Brand:
About Us:
Suzhou labelong packaging machinery co.LTD.
Labelong is a intergration of research and development, manufacturing, sales specialized automatic packagingmachinery manufacturers.
Company's main research and development production of various kinds of packaging machine ,As follow:
1.Water treament system
2.semi&full automatic blow molding machine
3.semi&full automatic bottling line
4.sleeve labeling machine
5.Adhesive labeling machine
6. hot melt glue labeling machine
7.packing machine
can be customized various non-standard machines.
The company has advanced international equipment and technology, the machine mainly components and circuitelectric appliance all come from Italy, Switzerland, Germany, Taiwan and France. our Company's products with high performance, high technology content products.
The products sell well all over the world, in part of models are exported to southeast Asia, the Middle East, Europe and the United States, Malaysia and other countries and regions in the world...
Professional makes best quality, Labelong together with you to create success.
