ketchup packaging machine

Features:1.It adopts three-side sealing design, pushes the seals left and right, dual temperature control, upper and lower sealing can set the temperature independently, the sealing is firm, and the packaging is beautiful and generous.2.With the vertical stirring design, the stirring speed can be freely adjusted to effectively p

Featured Products

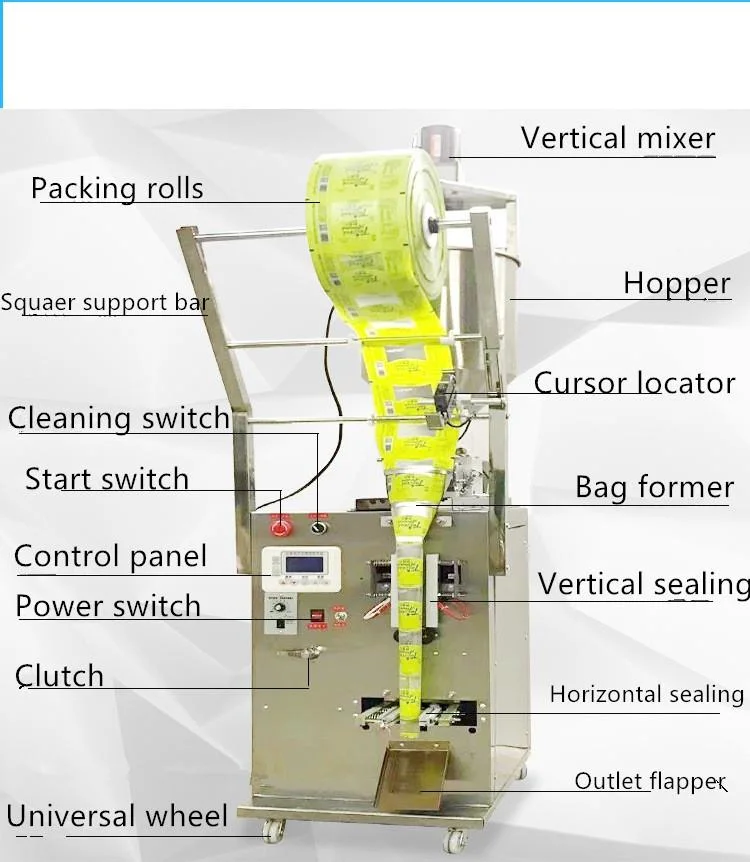

Features:
1.It adopts three-side sealing design, pushes the seals left and right, dual temperature control, upper and lower sealing can set the temperature independently, the sealing is firm, and the packaging is beautiful and generous.
Ketchup Packing Machine
2.With the vertical stirring design, the stirring speed can be freely adjusted to effectively prevent the precipitation and blocking of liquid sauce items.
Ketchup Packing Machine
3.Machine components reduce shaft wear to a large extent and each component is polished.
Ketchup Packing Machine
4.The cursor locator can automatically locate the length of the color bag and reach the length of the cut bag, making the package more beautiful and elegant.

5.It can be customized according to customers detailed request
Ketchup Packing Machine

6.It has the function of ribbon printing,automatic weighing,automatic baiting,automatic sealing and auto cutting.

Application:
It is suitable for packing:tomato ketchup,water,wine,oil,vinegar,soy sauce,milk,honey,peanut butter and mayonnaise etc,

Technical Parameter:
Model YH-620
Voltage220V/50hz or 110V/60Hz
Power360W
Packing speed15-25 bags/minute(depends on product)
Packing volume range 3-60(ml)
Packing error range About 1ml,
Packing typeThree sides sealing
Applicable packing material Hot sealing material
Dimension(L*W*H)500*600*1650(mm)
Weight About 80kg.


Suitable for bag specification:
1.Film width:80mm.,finished bag width:40mm,bag length:0-160mm can be adjusted.
2.Film width:100mm,finished bag width:50mm.bag length:0-160mm can be adjusted.
3.Film width:120mm,finished bag width:60mm,bag length:0-160mm can be adjusted.
4.Film width:125mm,finished bag width:62.5mm,bag lendth:0-160mm can be adjusted.
5.Film width:140mm,finished bag width:70mm,bag length:0-160mm can be adjusted.
6.Film width:150mm,finished bag width:75mm, bag length:0-160mm can be adjusted.
7.Film width:160mm,finished bag width:80mm,bag length:0-160mm can be adjusted.
8.Film width:170mm,finished bag width:85mm,bag length:0-160mm can be adjusted.
9.Film width:180mm,finished bag width:90mm,bag length:0-160mm can be adjusted.
10.Film widht:200mm,finished bag width:100mm,bag length:0-160mm can be adjusted.
