Main Features

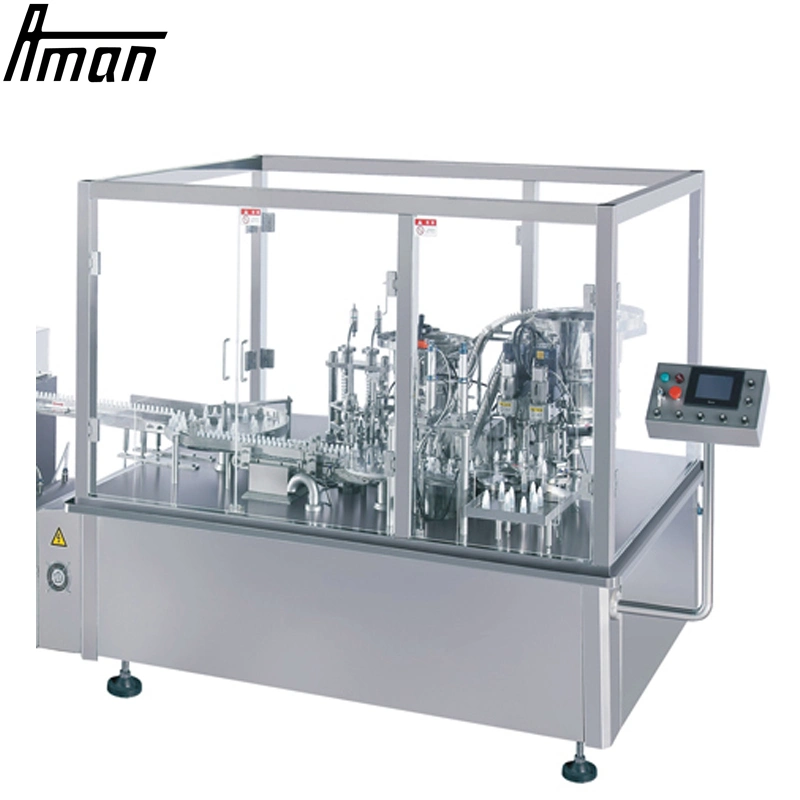

This machine is suitable for the filling of 10-200ml, 50ml to 500ml, 500ml to 2000ml etc series of beaded bottles, plugs and screw cap operations, widely used in medicine, daily chemical and other industries. A wide range of adaptation, easy to adjust, such as adjustment specifications, just need to replace a set of turntable mold can be. With accurate positioning, no bottle scann, smooth transmission, protection of the cap, simple operation and so on.
The filling machine is filled with the British Spirax peristaltic pump. Mitsubishi servo motor drive, original pipeline filling, with high precision, easy adjustment characteristics. Needle using siphon needle, can solve the needle drop-off hanging fluid, pull up the filling, no droplet situation occurred.
The screw cap head uses constant torque, automatic slip ping device, will not grind the bottle cap, the bottle will not follow, will not damage the appearance of the bottle. With accurate positioning, no bottles not filling, smooth transmission, simple operation and so on. Tabletops, around the side board are imported 304/2B high-quality stainless steel, with the liquid contact part of 316L stainless steel, the whole machine in line with GMP requirements. The production line transmission is mechanical transmission, transmission is accurate, smooth, gas-free pollution and the various institutions without error and other phenomena. When working, the noise is low, the loss is low, the work is stable, the output is stable, especially suitable for batch production.
Parameters
No | Name | Data |
1 | Filling capacity | 10ml to 100ml, customized |
2 | Filling speed | 70-90bottles per min, 30 to 50bottles per min |
3 | Filling heads | 2heads, 4heads, 6heads, 8heads as per customer requirements |
4 | Filling accuracy | +/-0.5% |
5 | Power supply | 220V 1Phase or 380V 3Phase |
6 | Power | 2.5KW |
7 | Air supply | 0.3~04kfg/cm2 |
8 | Weight | Around 880kg |

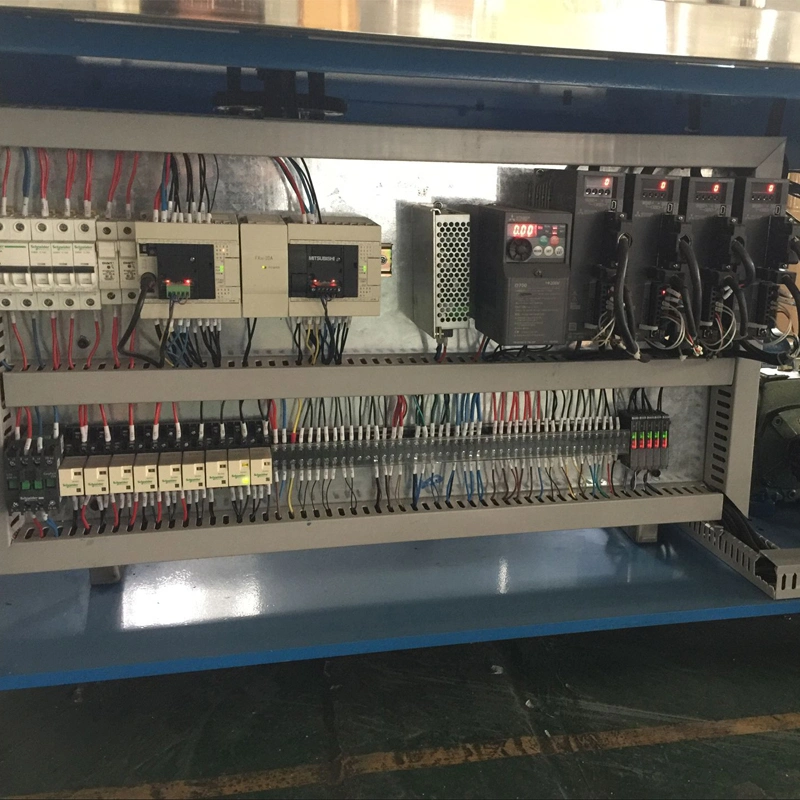

Configuration
Switching Power Supply: Schneider
AC Contactor: Schneider
Button: Schneider
Alarm Light: Schneider
PLC: Siemens
Touch Screen: Simens
Cylinder: Airtac
Servo Motor: Schneider
Water Seperator: Airtac
Electromagnetic Valve: Airtac
Visual Inspection: COGNEX
Frequency Converter: Schneider
Detection Photoelectric: SICK
♦ The series filling machine is a kind of PLC controlled high-tech filling machine with photoelectric sensing and pneumatic actuating researched and developed by our company.
♦ It can be suitable for water injection,fluids,detergent products of different viscosity.
♦ Widely used in food,medicine,grease,pesticide,chemical and cosmetic industries.
♦ The machine can be coveniently maintained. It can realize accurate metering and make sure no filling is made in case of no bottle or bottle shortage.
♦ It is designed with submersible filling function,featured by accurate measurement and no bubble and dropping during the filling.
♦ Adopts electric components of world-famous brands. The main power cylinder adopts FESTO Germany dual-action cylinder and magnetic switch, Omron photoelectric and Germany SIEMENS PLC touch screen are equipped to ensure its excellent quality and stable performance.
