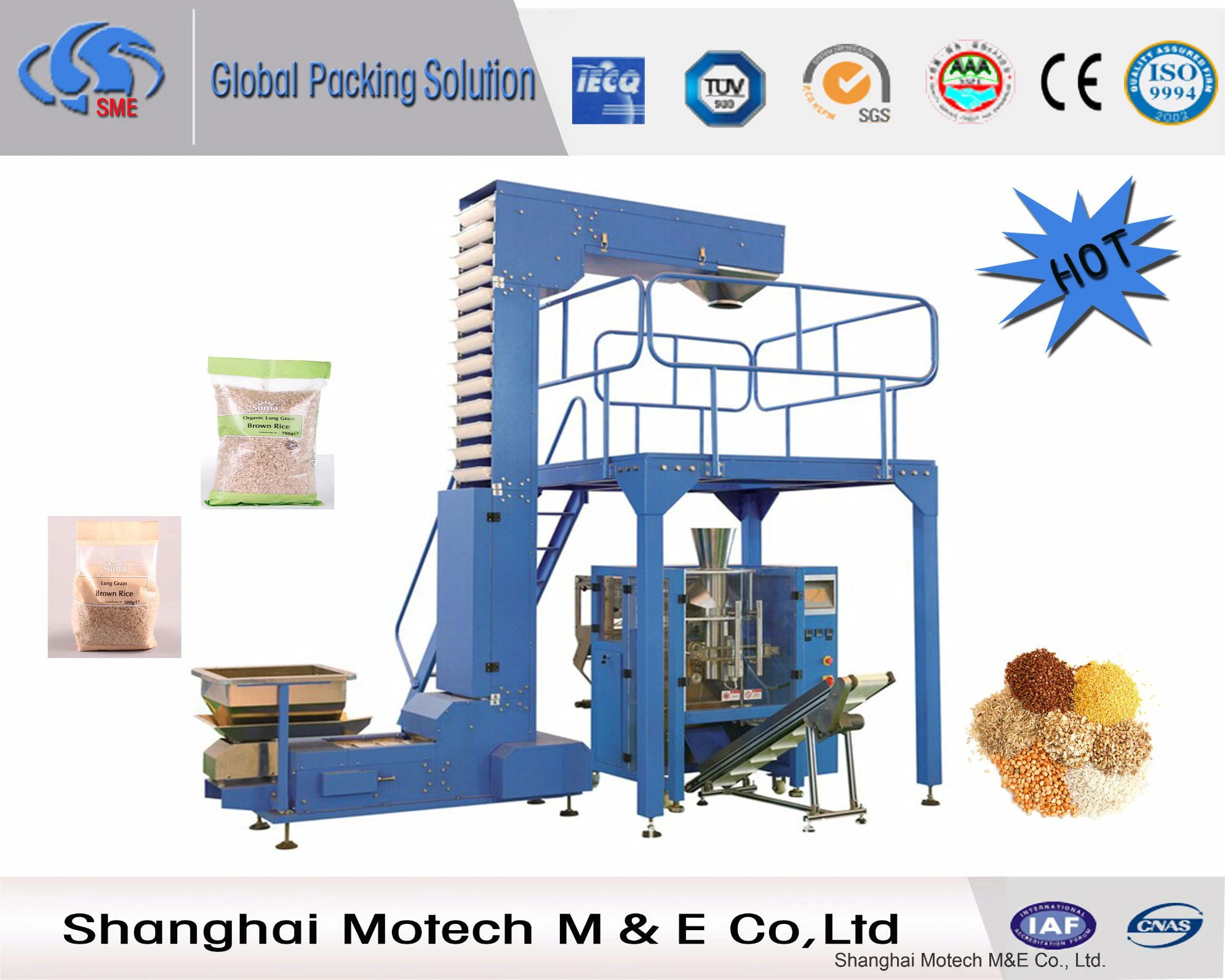

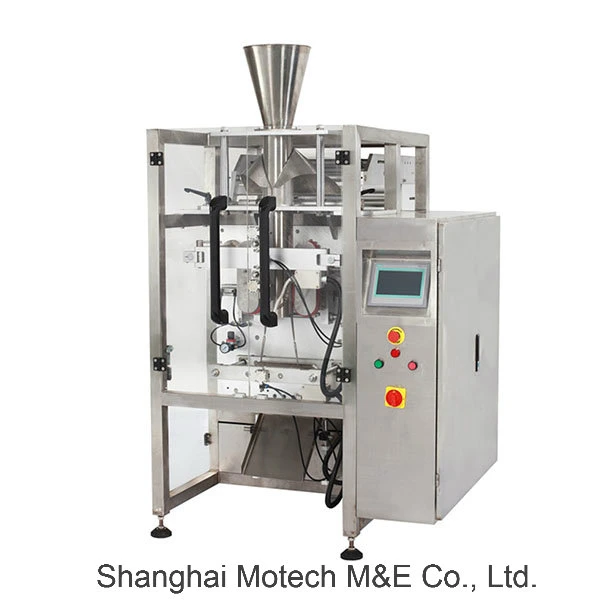

Multi-Head Scale Candy Chocolate Chip Packaging Machine

Multi Head Weigher Bag Granule Packing Machine (VFFS)    Application:The machine is suitable for packing with candy,seeds,jelly, pet foods, puffy foods, pistachio, peanuts, nuts,raisins, dried fruits, frozen foods, snack foods, hardware, meatballs etc. Technical  Feature:1.Sever motor (Panasoni

Featured Products

Multi Head Weigher Bag Granule Packing Machine (VFFS)

Multi Head Weigher Candy Chocolate Chips Packaging Machine


Application:
The machine is suitable for packing with candy,seeds,jelly, pet foods, puffy foods, pistachio, peanuts, nuts,raisins, dried fruits, frozen foods, snack foods, hardware, meatballs etc.


Multi Head Weigher Candy Chocolate Chips Packaging Machine


Technical  Feature:
1.Sever motor (Panasonic / Japan) drawing film , the tension membrane more accurate, faster, more accurate measurement.

2.PLC computer system (Panasonic / Japan), function is more stable , adjust it with any parameters.

3.Touch Screen (WEINVIEW / Taiwan): Chinese & English touch screen display, intuitive and simple operation.

4.Independent temperature control system, the precision can be up to + / - 1 degrees.

5.Horizontal and vertical sealing temperature control independently, suitable for all kinds of composite film, PE film packaging materials, etc.

6.Packaging style diversified, back sealinggusset bagcontinuous bagspunchingblock bottom bag etc.

7.Simple and fast bag size changeover without tools.

8.Compact small size design, small footprint.

9.Easy to maintain-low maintenance.

10.Work environment quiet, low noise, saving energy.

Multi Head Weigher Candy Chocolate Chips Packaging Machine

Main Technical Parameter:

TypeMD-K420MD-K520MD-K720MD-K820
Bag length50-300mm80-400mm120-500mm100-500mm
Bag width50-200mm80-250mm120-350mm250-400mm
Max Film width 420mm520mm720mm820mm
Packing speed5-70bags/min5-70bags/min5-50bags/min5-60bags/min
Measuring range100-1200ml3000ml(Max)5000ml(Max)15L (Max)
Air consumption0.65mpa0.65Mpa0.65Mpa0.65Mpa
Gas consumption0.3m³/min0.3m³/min0.5m³/min0.8m³/min
Power voltage220V/380V220V/380V220V/380V220V/380V
Power2.2KW4.0Kw5Kw5Kw
Dimension1320×950×1360mm1150×1795×1650mm1780×1350×1700mm1600×1350×2110mm
Machine weight540Kg600KG700KG900KG
Shipping and payment :
Multi Head Weigher Candy Chocolate Chips Packaging Machine

Other machine we can provide

Multi Head Weigher Candy Chocolate Chips Packaging Machine

About MOTECH:

Motech has been providing world-class quality, service, and support since 1997. In that time, we have completed more than 25,000 custom projects for customers worldwide. Our customers, which range from start-up operations to Fortune 500 multinational corporations, can be found a broad range of industries, including:

•Medical
•Pharmaceutical
•Energy
•Food Processing
•Government
•Aerospace
•Electronics/Semiconductor
•Telecommunications/Fiber Optics
•Packaging/Material Handling
•General Manufacturing

Our machine combine a tightly crafted and functional design with optimum ease of operation and a long life span. Installation is just a matter of "plug&pack", and smart design ensure that hygiene standards and maintained at all times.
You can be sure that your machine will be delivered quickly,thanks to Motech's extensive international network of authorised dealers.This network guarantees a high-quality,personalised service and a rapid,efficient response to any questions you may have




Products
  • Flow Packing Machines

  • Granule Packing Machines

  • Linear Weigher

  • Liquid Packing Machine

  • Multihead Weigher

  • Packaging Lines

  • Paste Packing Machines

  • Power Packing Machines

  • Rotary Pre-made Bag Machines

  • VFFS (Bagging) Machines

  • Weight Cheaker Machines

  • Conveying Elevator Equipment

  • Metal Detector

Multi Head Weigher Candy Chocolate Chips Packaging Machine

The SME business is organized into three divisions: Machine, Equipment as well as related equipment. Each division serves a global market, focusing on its specific customer segments.

SME has 3 manufacturing sites distributed in China. With its own sales office in Shanghai, supported by some 20 staff and dealers worldwide, its e-business marketplace and global distribution system, SME is always close to its customers for the supply of both products and services.
