Product Description

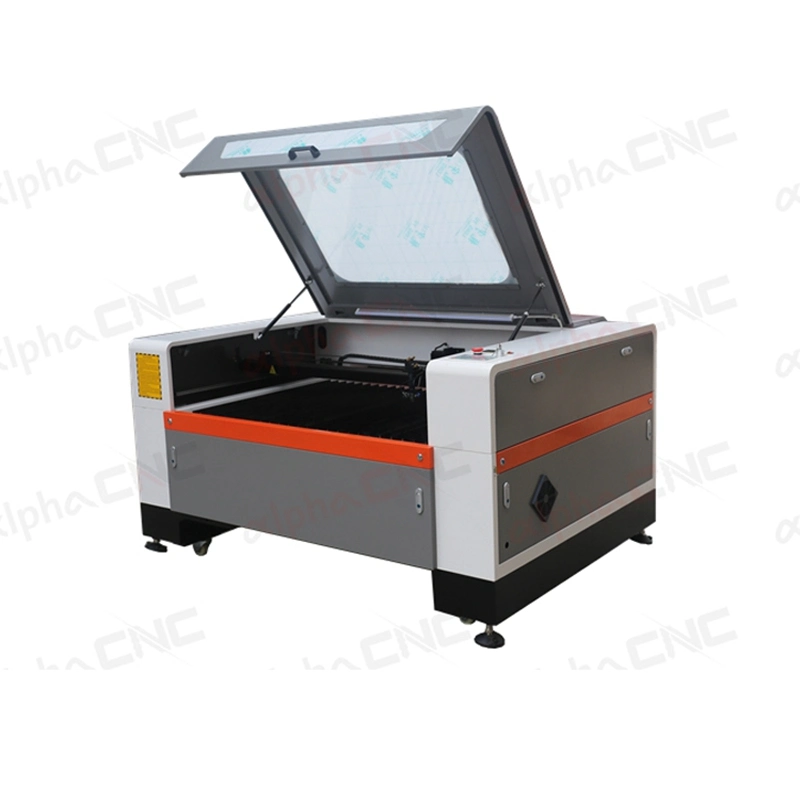

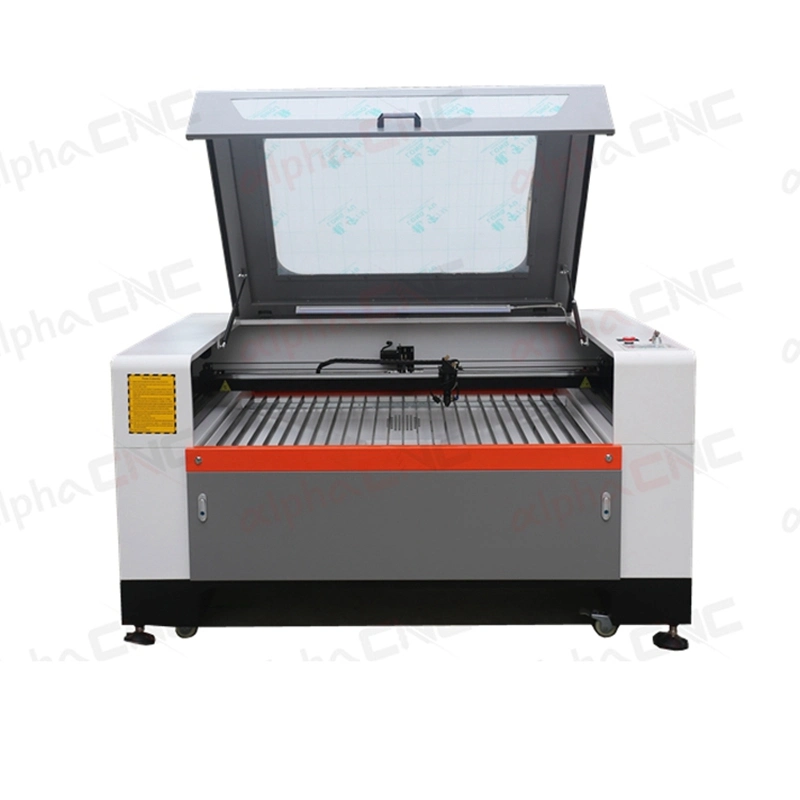

Professional Photo Laser Etching Machine With RotaryApplicable Industries:
Advertising, arts and crafts, leather, toys, garments, model, embroidery, clipping, packaging and paper industry, Wood Working, engraving embroidery, crafts, RC airplanes, balsa models, kites, robotics kits, and clothing patterns.
Cutting and Engraving materials:
jade, marble, glass, crystal, plastic, garments, paper, leather, rubber, ceramic, Hard Wood, MDF, Plywood, , Plastic, Acrylic, and other non metal materials. Can also engrave onto metals with the use of an additive laser marking material like "Cermark".
Specifications:
• Laser-type : Sealed CO2 laser tube, water-cooling, 10.6um
• Laser power: 80W(other wattages available)
• Machine Power: 220VAC
• Engraving area: 1200*900mm, 1300*900mm, 1400*900mm, 1400*1000mm, 1600*1000mm(other size available)
• Max engraving speed: 0-30,000mm/min
• Max cutting speed: 0-24,000mm/min
• Laser output control: 1-100% software setting
• Location precision: less than 0.01m
• Highest scanning precision: 50-1000DPI
• Operating temperature: 0 - 45C
• Operating humidity: 5- 95% non-condensing
• Minimum shaping character: English 1x1 mm
• Driving system: Micro-step motor and amplifiers
• Cooling mode: -based chiller and water flow sensor
• Auxiliary equipment: Vacuum/Exhaust fan, air-exhaust hose, air-assist pump
• Work surface: Iron honeycomb
• Controlling software: Ruida
• Compatible software: TAJIMA, CorelDraw, AutoCAD, Photoshop, ...and more
• File formats supported: JPG, BMP, PLT, DST, DXF, AI...
• Color separation: Uses color property to set function, speed, and laser power.
Standard Configuration:
Laser Cutter/Engraver, Water cooling pump and tank, Air Pump, Exhaust blower, Software and Software User Manual, Machine operation Manual, Software User Manual, Trouble Shooting Manual, Communication cable, Power cable, Lenses and Laser tube (80 Watts), Machine operation Manual, USB Communication cable.
Easy to Use LCD Control Panel
User Friendly LCD control panel allows the user to quickly change selected program and modify machine operational conditions. You can Start, Stop, Pause, Reset, Datum, Test Fire, Outline engrave project area, Move the X or Y axis, LCD Viewing Display, Z-Axis up/down, Control Interior light, Emergency Stop, Lockout the operations with the Key.
Dedicated Micro Processor Controller for great performance
The heart of the laser machine is the industry leading Ruida controller. The Ruida motion controller is connected to the computer by USB connection. The computer downloads the project to the laser motion controller and it does all the work, leaving the computer and operator free to work on the next project. The dedicated Ruida controller has RAM onboard to store large projects without re-downloading from your computer.
Laser tube
The standard laser tube is 80w. Alpha supplies 80-180 laser tube for your choice, you can choose according to your work and the workpiece thickness.
Transmission system
The guide liner is Taiwan Hiwin square rail, which is durable, after long time use, it will still have high precision. The belt is Shanghai Fulong brand, it is durable and hard deformed.
Table
Alpha supplies blade and honeycomb table for your choice, you can choose according to your requirement.
Air Pump
The air pump is used for three basic reasons. The primary reason is the push fumes away from the laser's focal lens. This protects the lens from contaminants which could destroy the lens. The second function of the air pump is to push air into the material's kerf as created by the laser beam. Air that is applied to the kerf will remove debris/fumes and allow the laser light to penitrate deeper through the material. The third reason is that the air will help to cool the material. If the laser cut/engraved material stays hot, then it could warp or shrink. This air pump is a diaphram style which does not require oil. Oil or water in the air line could be projected directly onto the focal lens. This air pump has a higher air flow rate and is quieter than other piston-stroke designs.
Our CompanyAlpha CNC Co., Ltd. was established in 2000, specializing in CNC machinery with rich experience! The company has two factories: CNC Router and Laser Machine factories and plants.
Alpha CNC is comprehensive in the production, designing, manufacturing, trading and supplying service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, "Brand AlphaCNC " gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
"AlphaCNC Products are widely used in the fields of advertising, furniture, gifts, decoration, packaging etc., and materials of wood, acrylic, stone, fabric, leather metal, etc."AlphaCNC "is well-known not only in China, but also in Russia, Europe, Southeast Asia, Middle East, Africa, the Americas, India and other more than 120 foreign countries.
AlphaCNC is with advanced and powerful machining capability. We have imported high precision 5 axis CNC Machining center to process the machine frame, the top milling, side milling, and side drilling will be finished in one machining center, which ensure our CNC machine is with higher precision, Moreover, the small machine parts are machined by American imported Haas ATC CNC Center.
AlphaCNC has strong technical strength. We has more than 10 engineers to develop new machines every year, and our engineers will design the machine according customer's special request. We have more than 20 after-sale service engineers to serve our customers 7*24.
ALPHACNC always adhere to the principle --- First class reputation, first-class service and excellent products.
Q1: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.
Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!
Q6. What's your date of delivery?
For standard machine, about 15 working days; For customized machine, about 20 working day.
Q7.MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
