It's newest technology packaging machine with max. 50bags/min, suits for packing liquid (milk, water, honey, ketchup, Tomato Paste, detergent, yellow wine, soy sauce, vinegar, fruit juice, peanut thick liquid, jam, hot pepper sauce, thick bean sauce )etc.
Kinds of Premade Pouches
Stand up pouches, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch etc
1. It uses stainless steel 304 shell for food grade required.
2. Automatic detection. No pouch or pouch is not opened completely, no filling, no sealing.
3. Horizontal Infeed conveyor or Magazine cabinet suits for bags with zipper, max. put 300pcs each time.
4. Zipper Openner System: Servo motor (Panasonic / Japan) controlled.
5. Independent temperature control system (Omron/Japan).
6. PLC adjust bag width clamping: Only needs 2mins by auto PLC for adjust different bag width sizes.
7. It includes ribbon type date code: 3 lines * 17 characters.
8. Guarding: Glass Door Alarm (option) / Air Pressure Abnormal
9. Internal grooved cam design: The technology with high precision, suits for max. packing speed: 50 cycles/min with stable running.
10. Use free oil vacuum pump, avoid polluting the environment in the production.
Main Technical Parameter:
|Packing Range(bag size)||Width 80-200mm, Length 80-400mm|
|Packing Weight||20-1500ml(Depend on The Filling Products)|
|Capacity||20-50 bag/min (speed depends on filling product & weight)|
|Pouch Type||Stand-up bag, spout bag, Flat bag, paper bag, laminated material etc.|
|Total Power||5 kw|
|Compressed Air Consumption||0.6 m3/min|
|Voltage||3 Phase 380V 50HZ/60HZ|
|Machine Weight||2370 kg|
|Note:||1. According to the customer request, provides the special design. |
2. The machine disposition may make the choice.
1.Pouch Supplying --> 2. Coding Date + --> 3. Zip Opening (if need)--> 4. Pouch Opening ---> 4. Filling + Vibrating (if need)---> 5. Option functions (Nitrogen flushing/2nd fillings ) --> 7. Sealing 1st ---> 8. Sealing 2nd + Output

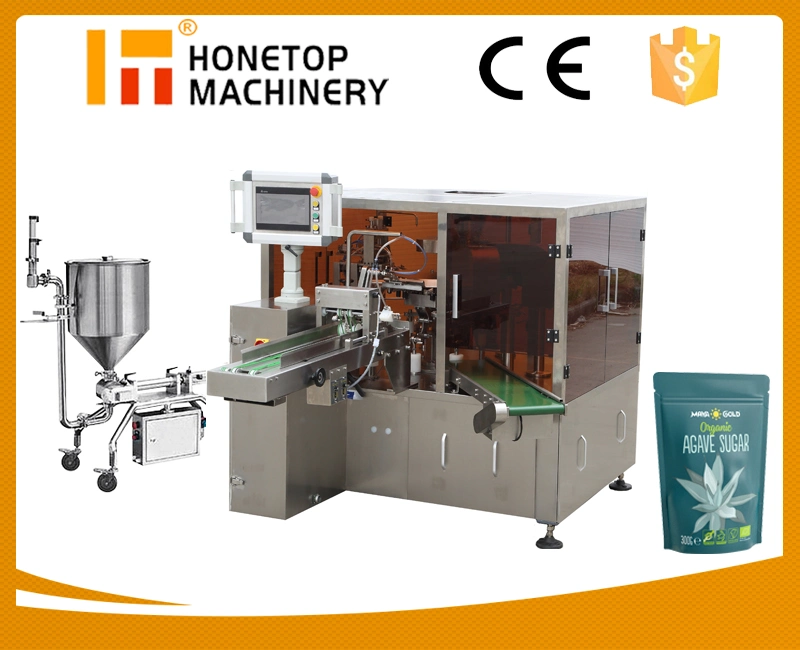

|2.Rotary Filling Sealing Packing Machine|
Machine body full of 304 stainless steel.
Main Electrical Components:
* SIEMENS PLC
* SIEMENS HMI
PLC adjust bag clamp adjustment: Only needs 2mins by auto PLC for adjust different bag width sizes.
|3.Liquid Piston Filler |
• They are most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrial;
• Typical application: used for filling liquidity is good material, such as filling liquid and paste material, such as water, oil, juice, detergent, sauce, salad, butter, margarine, ketchup, jam, cream, honey, shampoo etc.
Ruian Honetop Machinery Co., Ltd.
HONETOP MACHINERY has 17 experience years since 2002 in the packing industry, led to food flexible packaging machinery, is a professional design, development, production, trade integration in the packaging machine.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, how to use the machine.
* Engineers available to service machinery overseas.
Packaging & Shipping:
1.To oil machine and fix machine in the wooden tray avoid machine moving during shipment.
2.Use film to wrap whole machine avoid the seawater dropping on the machine.
3.To pack whole machine into wooden case avoid machine collision.
Q: Are you trading company or manufacturer ?
We are a manufacturer, we have produced packaging machines for 17 years since 2012 .
Q: What's the guarantee of the machine?
We offer 2 years' guarantee of the machinery with 2 sets of free spare parts.
Q. How to operate machine when we get it?
1. You will get on line training service (video conference) with our professional engineer, if you want to operate by yourself.
2. We can send our engineer to your place, it needs 5-10 days, he will install the machine and train the workers how to run the machine well.
Q. How to repair or change when some parts are broken?
1. You have free spare parts in stock, can change or repair easily.
2. We use the famous brand parts (Siemens, Festo, Schneider etc), can get it from your local market.
Q: What is your terms of payment ?
It's flexible, we prefer 100% in advance as each payment will cost about USD35 bank charge, also we accept 30% deposit before production, 70% balance before shipment if cutomer need.
