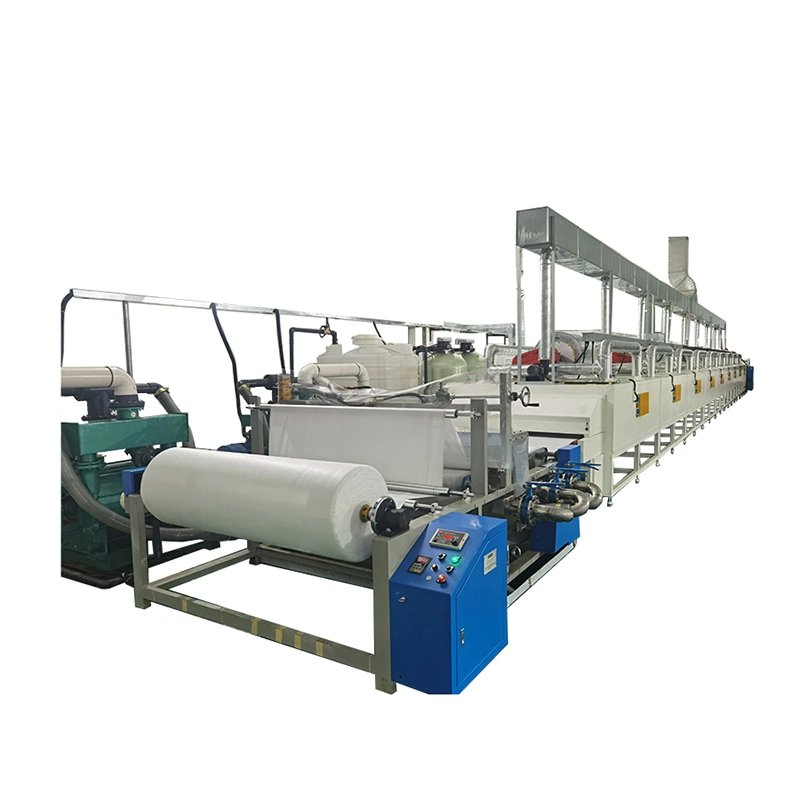

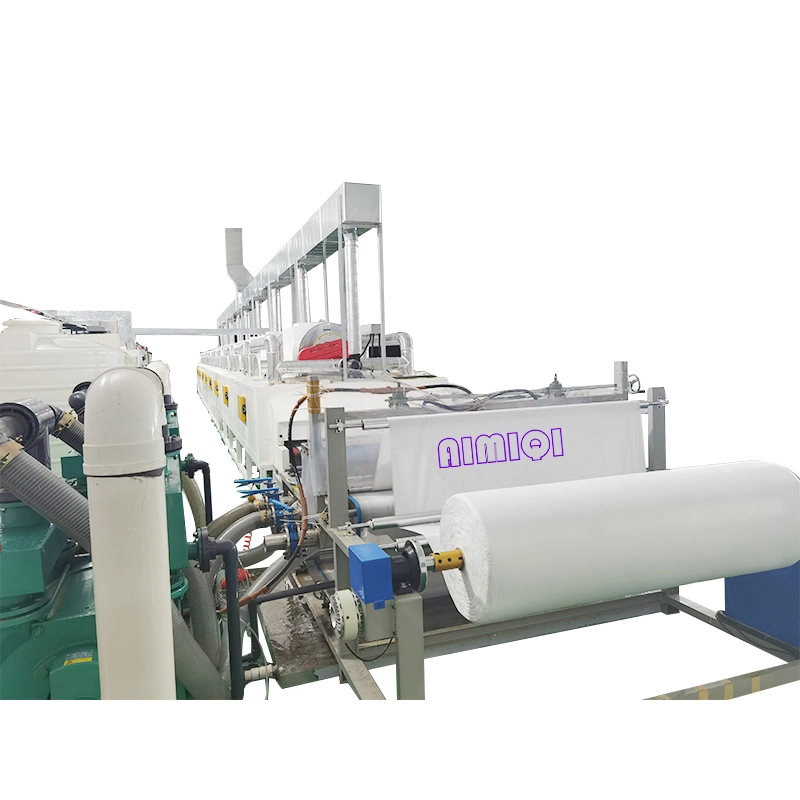

Shenzhen Mingqi Robot Spunlace Electret Equipment for Melt-Blown Fabric Machine


System Composition:
1. EDI ultrapure water system(2 stages of RO system):

2. Water Electret System(core process)

3. Tunnel Furnace:

The powerful features of AIMIQI spunlace electret system:
1. Productive capacity: 1.2-1.5T per day.
2. Low breathing resistance: 3-5pa.
3. High filtration efficience: Oil test 95% +, salt test 99% +
4. Winding machine: tension control to keep winding balance
5. Spunlace pressure: adjustable for 25gsm/30gsm/45gsm meltblown
6. Tunnel furnace: built-in double fans, the top blows air and the bottom draws air, inner temperature adjustable. 3 layers "S" conveyor to save running space.
7. Rewinding machine: rewinding and slitting function, tension control
8. Ultrapure water: dual EDI RO system, resistivity 18.2MΩ.cm
9. Water recovery rate: 33.33%
10. Conveyor speed: 10M/min
11. Total power: 260Kw
12. Our system is studied from 2016 with core technology directly transplanted from Shenzhen China Textile Filters Non-woven Fabric Co., Ltd.
13. Quite long time electrostatic retention: 3 times that of corona thermal electric electret.
14. Formula is available which guarantee high performance of meltblown.
15. Assembly directly with the original equipments, fast and stable

Warranty:
one year for core, permanent warranty for firmware

Technology Support:
Video technical support, online support.
