| Model No. | UV1030 UV1050 | UV1100 |
| Laser Type | UV laser | |
| Laser Wavelength | 533nm | |
| Laser Power | 3W/5W | 10W |
| Cooling Method | Water cooling | |
| Power Consumption | 800-1200w(220VAC,50HZ) | |
| Marking Focal Length | 100mm~190mm | |
| Positioning Accuracy | 0.01mm | |
| Min Line Width | 0.1mm | |
| Marking Area | 50mm X 50mm~175mm X 175mm or other customized | |
| Assembly Line Speed Support | 0~180m/min | |
| Marking Speed | ≤16000mm/s (according to different material) | |
| Character Size | Adjustable in Marking Range | |
| Marking Line number | Adjustable in Marking range | |
| Marking Content | Chinese and English Character/Numbers/Graphics/Date and Time/Serial Number, etc | |
| Marking Font | All kinds of standard CAD geometric font, also can be user-defined extended. | |
| Laser source | Visjet | US Synrad |
| Galvanometer scanner | Visjet | German Scanlab |
| Product introduction | Product Applications | |

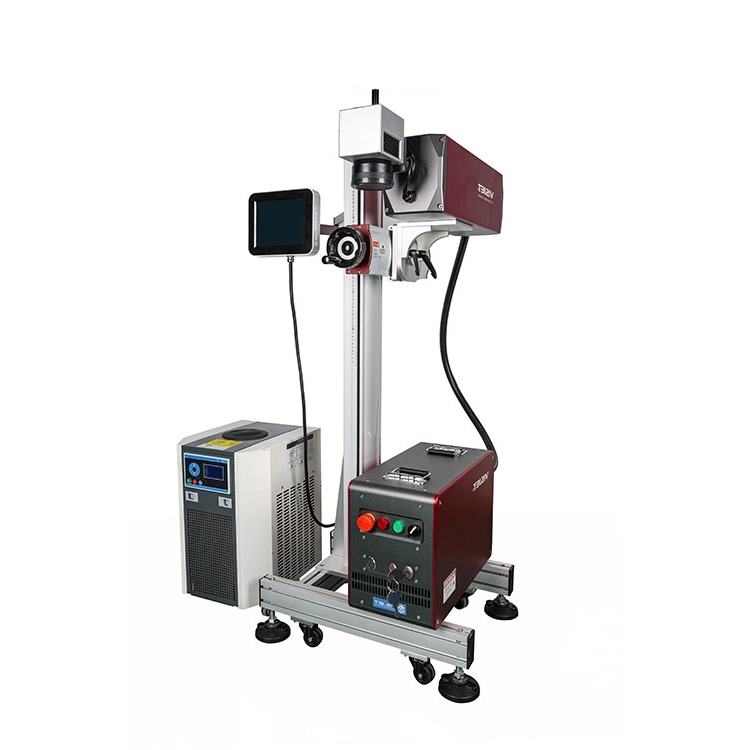

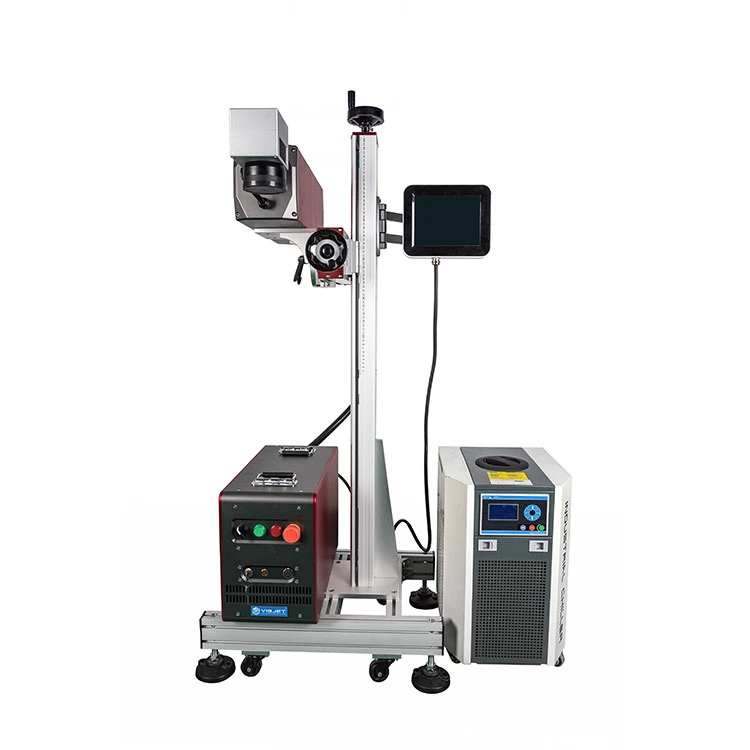

| UV laser marking machine is developed by using a 355nm UV laser, it adopts third-order cavity frequency multiplication technology. Compared to infrared laser, the focusing spot of UV laser is much smaller, which helps to reduce the mechanical deformation of the materials to a large extent. It features of smaller heat affected area and more beautiful marking effect. | Applications Fields: 1. Electronic components: resistance, capacitance, chips, printed circuit boards, computer keyboard etc. 2. Apparatus and meter: panel board, nameplates, panel signs, precision equipment etc. 3. Hardware tools: knives, tools, measuring tools, cutting tools etc. 4. Mechanical parts: pistons, bearings, gears, shafts, clutch, standard parts, motors, etc. 5. Daily necessities: cosmetics, labels, handicrafts, zipper, key holder, sanitary ware, eyewear, LED light etc. 6. Digital electronic: computer, laptop, digital camera, mobile phone and accessories etc. 7. Jewelry: rings, necklace, earrings, gold, silver etc. 8. Medical: medical device, surgical instruments, medical packaging etc. 9. Packing: dishware ,food, beverages, smoking and alcohol, plastic packing bag etc. Applications Materials: Metals: gold, silver, brass, aluminum, steel, stainless steel, iron, titanium, carbon steel, mild steel, spring steel, copper, magnesium, zinc, galvanized sheet, rare metal and alloy steel, special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy) etc. Nonmetals: rubber, resin, nylon, plastics(PET, HDPE, PP, ABS, PC, PPS, PVC) etc. |
Our laser marking machine can hard,soft, brittle productsprint on plane,arc and flying objects of various features of text, symbols, patterns; Its applications fields:Glass industry,package industry (food package,medical package and so on), sign industry, leather product industry,wood industry,beverage, PCB, artware, electronic product, cable and tubes etc.
