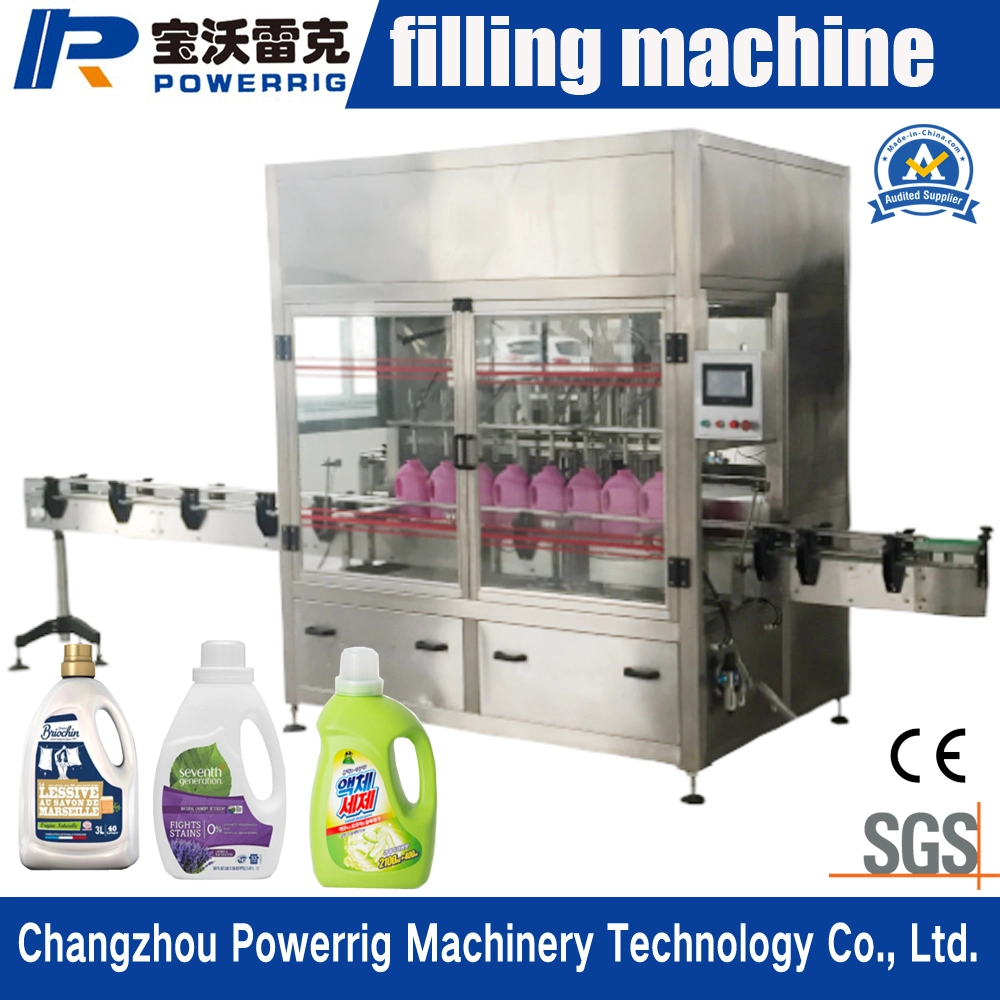

Product Introduction:
This machine adopt PLC touch screen Siemens control,It's adopt piston filling form. The filling nozzle material tank and touches liquid part material is USU304 Teflon and POM.And it have proteation device that machine will stop and alarm when lack of materials .
Application :
Filling material : detergent,shampoo,dishwasher,liquid soap ,toilet cleaner ,car oil, motor oi, engine oil,etc .
Suitable bottle : Square bottle, round bottle , Unique bottle etc.
Suitable cap: Screw cap, press cap , pump cap
Suitable label:Sticker Label
Suitable filling volume range: 100ml-1000ml , 500-2000ml, 1000-5000ml ( Could according to customer filling volume custom made)
Main parameter
Filling head | 16 heads | Voltage | 220V |
Speed | ≤5000BPH (base on 1L) | Power | 2kw |
Filling volume | 1-5L | metering error | ≤±3‰ |
Container minimum diameter | 50mm | Air Comsumption | 0.9m3/min |
Working Pressure | 0.6Mpa-0.7Mpa | Dimension | 2440mm × 1480mm× 2610mm |
Main Features
1) PLC programmable control, with touch screen man-machine interface system .
2) Automatic feeding, automatic filling, automatic out bottle after filling .
3) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
4) Stable and reliable operation, high production efficiency, strong adaptability .
5) Filling volume adjustable , each filling nozzle could be single use , you can stop any filling nozzle at any time .
Application:

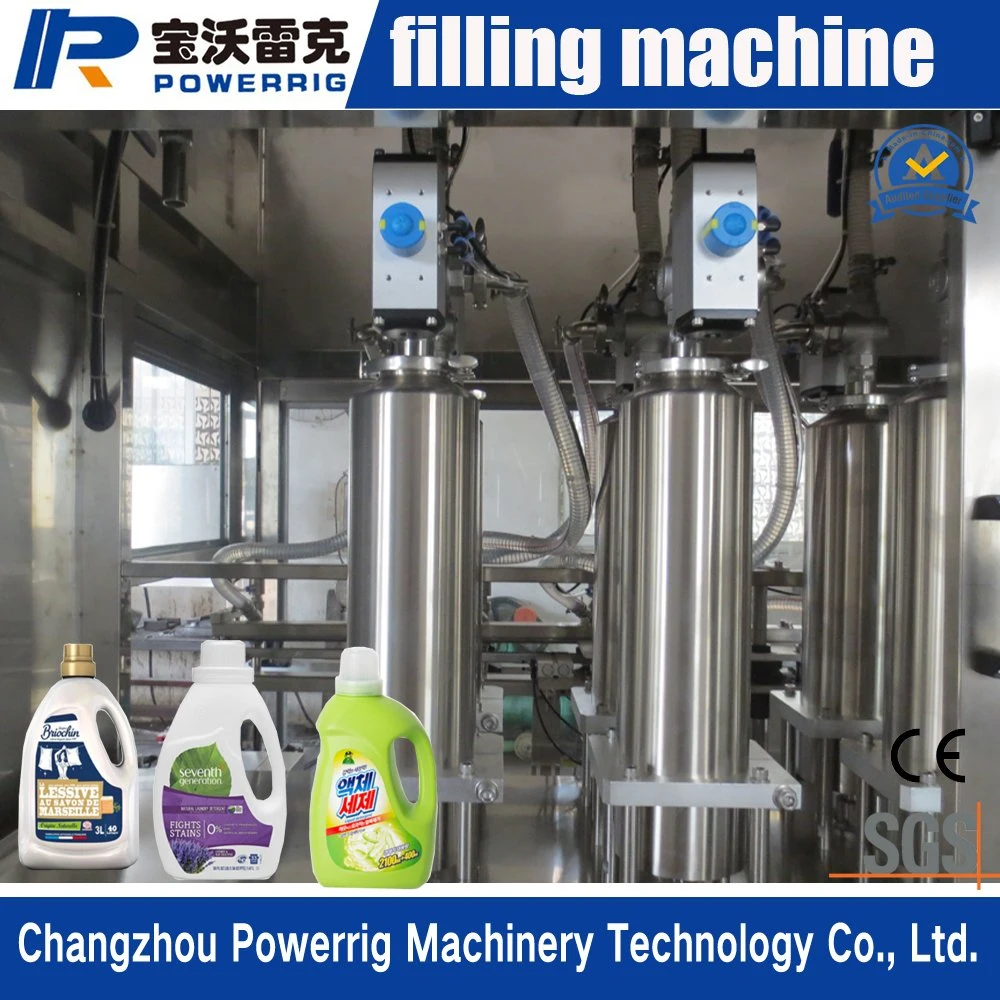

Piston cylinder :
According to customer production capacity requirements could make 1-5 liter cylinder
Touch screen:
The whole filling processing adopt touch screen control , and each filling nozzle could be single use by touch screen control .
Drive system :
The machine adopt servo motor double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.
Filling system:
Filling nozzle adopt bottle mouth diameter custom made , it adopt dive filling to make sure the filling material won't have bubble.
More details show:
Packaging & Shipping
Our Services
Installation service
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
FAQ
Q: Are you trading company or manufacturer ?
A:We are factor lie in Jiangsu province, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How can I ensure that I get high-quality machine?
A:As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.
Q: My material viscosity is very high , how can you fix it ?
A: For some material we can make heating hopper to make the material can flow .And according to material viscosity to decide use piston pump filling.
Q: How can I install my machine when it arrives?
A: The standard machine we will adjust it before shipping , when you get it you can directly use it . If you have other size tube need change mold , we will send you video of how to adjust it . Also , we can offer over sea technical service to come your factory install machine.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.
Q:How about the spare parts
A: After we deal down all the things , we will offer you a spare parts list for your reference.
