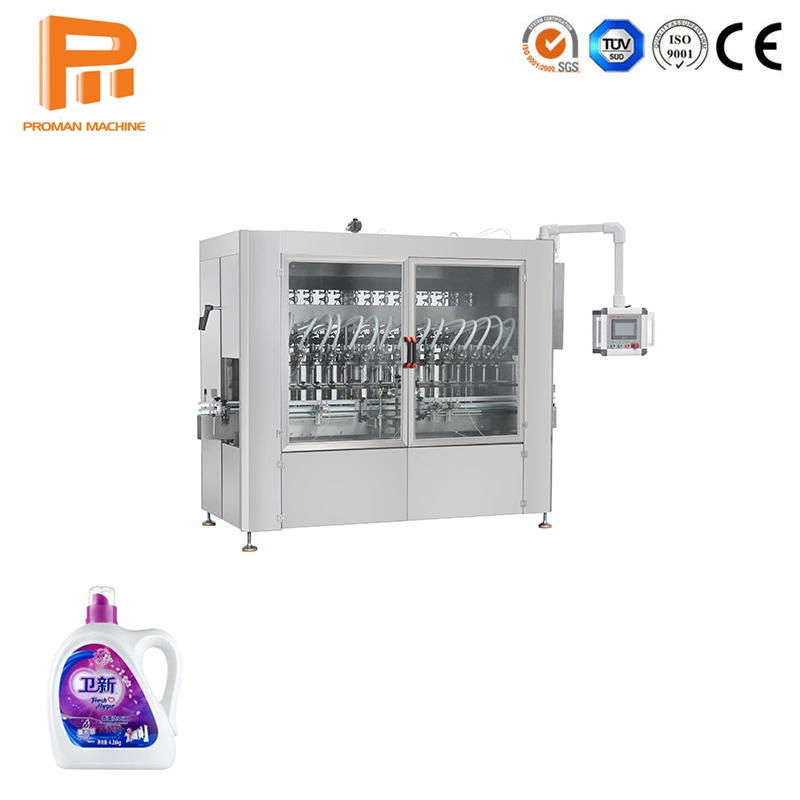

1000ml Viscous Liquid Detergent Cleaning Products Piston Filling Sealing Machine

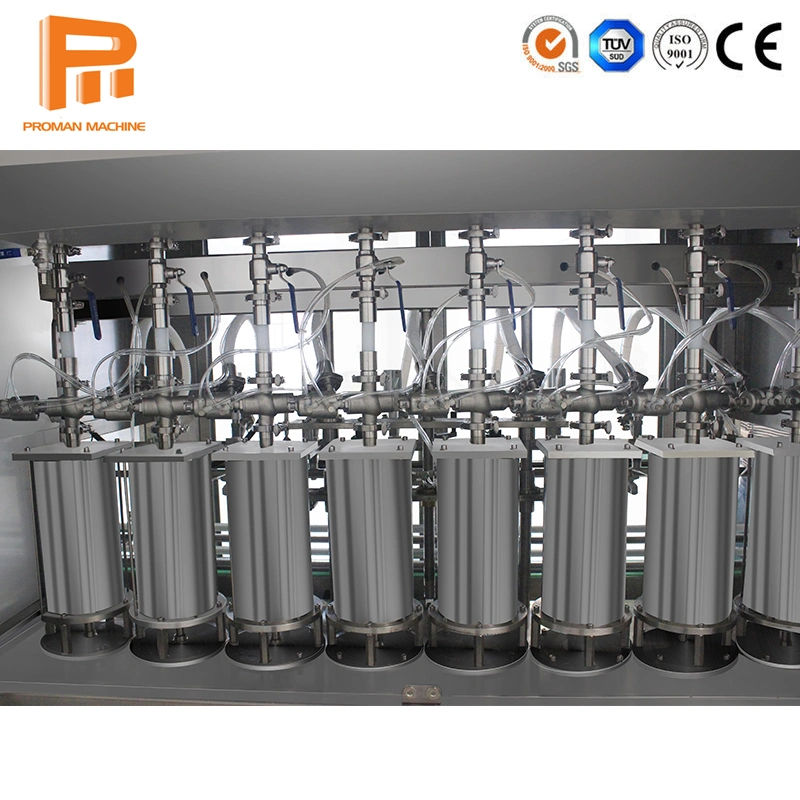

This machine is controlled by PLC microcomputer,which is integrated with light,machine,electricity,sensor and pneumatic.The piston stroke of the injection cylinder is driven by a servor mtor,and the stroke positioning is accurate.When the filling volume is close to the bottle mouth,the speed and pressure are reduced,so as to prevent the material from splashing because of the large momentum.
The machine has a high degree of automatic,easy adjustment,when the change of the specification or the correction of measurement can be achieved only by adjusting the display screen.It can be used for filling all kinds of viscous material such as vegetable oil,honey,sanitizer,alcohol,jam,syrup,preparation,suspending agent,oil and daily chemical industry.
Features:
1.Accurate Measurement: Adopt servo control system, ensure the piston can always reach constant position
3. Convenient Adjustment: replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment Adopt servo motor to descend
4. Selecting the international famous brand electrical components configuration. Mitsubishi Japan PLC computer, omron photoelectric.The touch screen ensures the quality of its outstanding with long-term performance.
Technical Parameter:
| capacity | 5000b/h |
| filling volume | 50-1000ml |
| measurement precision | ±1%(250ml),±0.5%(250ml-1000ml) |
| applicable bottle diameter | 40-100mm |
| air pressure | 0.6-0.8Mpa |
| total power | 2.5kw |
| voltage | AC380V,50/60HZ |
| net weight | 1200kg |
| dimension | 2400*1300*2150mm |
Electrical components of our filling machine:
| ITEM | SUPPLIER | Brand | |
| 1 | Touch screen | Taiwan | WEINVEIW |
| 2 | PLC | Japan | Mitsubishi |
| 3 | Photo sensor for bottles | Japan | OPTEX |
| 4 | solenoid valve | Taiwan | SHAKO |
| 5 | Level button | Mexico | JOHNSON CONTROLS |
| 6 | angle seat Valve | Jointed | BURKERT |
| 7 | Diving cylinder | Taiwan | AIRTAC |
| 8 | Power button | France | Schneider |
| 9 | Button | France | Schneider |
| 10 | frequency converter | France | Schneider |
| 11 | Magnetic switch | Taiwan | AIRTAC |
| 12 | oil-water separator | Taiwan | SHAKO |
| 13 | Speed reducer | China | Jiao xing |
| 14 | Relay | Japan | Omron |
| 15 | Servo motor | Japan | Panasonic |
