3D laser marking machine for automatic marking pen

Fiber Laser Marking machine Performance Features:1. Able to mark all metal materials and some non-metallic materials.2. Uses Germany IPG Fiber Laser Source. The Complete enclosed laser module design with the optical fiber transmission pump light source and air cooling system, which offers dust-free protection to the laser system

Featured Products

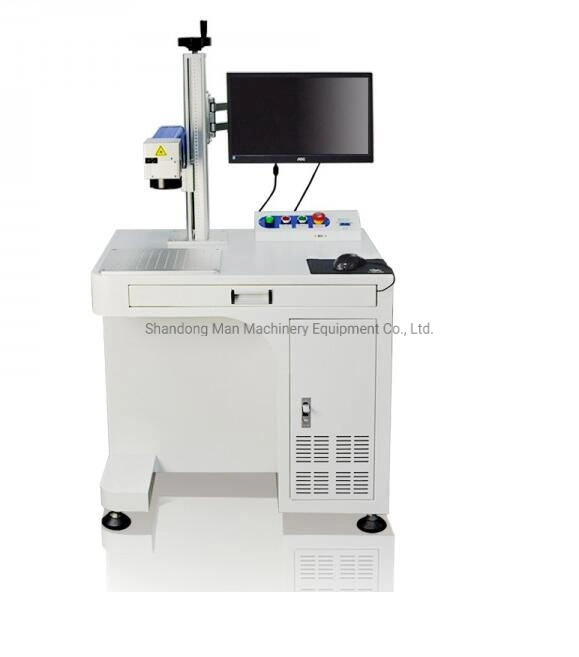

3D Laser Marking Machine for Automatic Marking Pen
3D Laser Marking Machine for Automatic Marking Pen

3D Laser Marking Machine for Automatic Marking Pen
Fiber Laser Marking machine Performance Features:

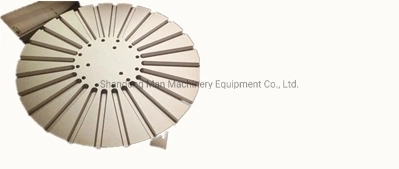

1. Able to mark all metal materials and some non-metallic materials.
2. Uses Germany IPG Fiber Laser Source. The Complete enclosed laser module design with the optical fiber transmission pump light source and air cooling system, which offers dust-free protection to the laser system. This greatly reduces the failure rate and results in stable laser output. It also provide a trouble and maintanence free laser system with a life span of 50, 000 hours for the laser system.
3. Able to mark a minimum line width of 0.02mm, minimum height of 0.2mm for English characters and depth of up to 1mm.
4. The MAN-20 is currently the best choice for industries seeking deep and fine marking at a fast speed.
5. Ergonomically designed. Can be placed on desktop, taking up a small working space. Low power consumption of 800W. Highly recommended for factories and retail space.
6. Low power consumption of 800W. Highly recommended for factories and retail space.
7. WINDOWS based marking software. Able to read CORELDRAW, AUTOCAD, PHOTOSHOP and other commonly used graphic files, such as AI, PLT, DXF, BMP, JPEG. Support for auto-coding, serial number, batch number, date, bar code and two-dimensional codes.
8. Able to mark 360° Circular objects such as finger rings, bracelets and other cylindrical objects with the included rotating device.

Product parameters:

Model nameMAN-F50
Laser typeIPG / RAYCUS/ /CAS/MAX/ (optional)
Laser power20W/30W 50W/(optional)
Supports graphical format PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Beam qualitym2 <2
Power stability(8h) <± 1% rms
Pulse repetition frequency20-2KHz
Power consumed<800W
Minimum line width50μm
Minimum character0.3mm
Laser Wavelength1064nm
Galvanometer Size100 * 100mm (optional)
Cooling wayAir cooling
Operating voltage110/220V ± 10% /,50/60HZ
Ambient operating temperature15 ° C - 35 ° C
Guarantee 3 years
Optional partsRotary device
Machine colorblue grey ( red white,yellow black etc. for option)

3D Laser Marking Machine for Automatic Marking Pen
Packing&Shipping:

3D Laser Marking Machine for Automatic Marking Pen
3D Laser Marking Machine for Automatic Marking Pen
