Products Description
Description:

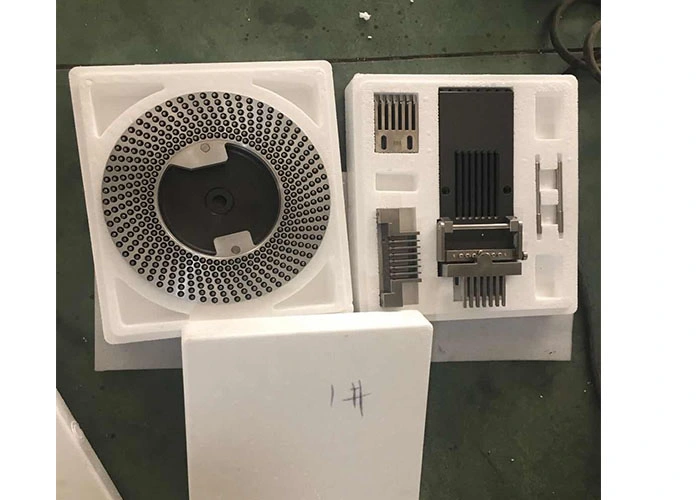

CGN208-D type capsule filling machine is a new efficient equipment based on DTJ-C model (old type) after research and development: easier more intuitive and higher loading in capsule dropping, U-turning, vacuum separation in comparison with the old type. The new type of capsule orientating adopts columns pill positioning design, which shortens the time in the replacement of mould from the original 30 minutes to 5-8 minutes. This machine is one type of electricity and pneumatic combined control, automatic counting electronics, programmable controller and frequency conversion speed regulating device. Instead of manual filling, it reduces labor intensity, which is the ideal equipment for capsule filling for small and medium-sized pharmaceutical companies, pharmaceutical research and development institutions and hospital preparation room.
Machine Specification:
Other Products We Manufacture:
1. Paper Straw Making Machine
2. Blister Packing Machine
3. Automatic Cartoning Machine
4. Automatic oral/vial/ampoule Packing Production Line
5. Bundle machine
6. Blister-Card Packing Machine
7. Capsule Filling Machine
8. Soft Gel Encapsulation machine
9. Tablet Press Machine
10. Capsule/Tablet Counting Machine
11.Strip Packing Machine
12. Plastic Ampoule Filling and Sealing Machine
13. Sachet Filling and Sealing Machine
14. Tube Filling and Sealing Machine
15. Emulsifier Machine + tank
16. Labeling Machine

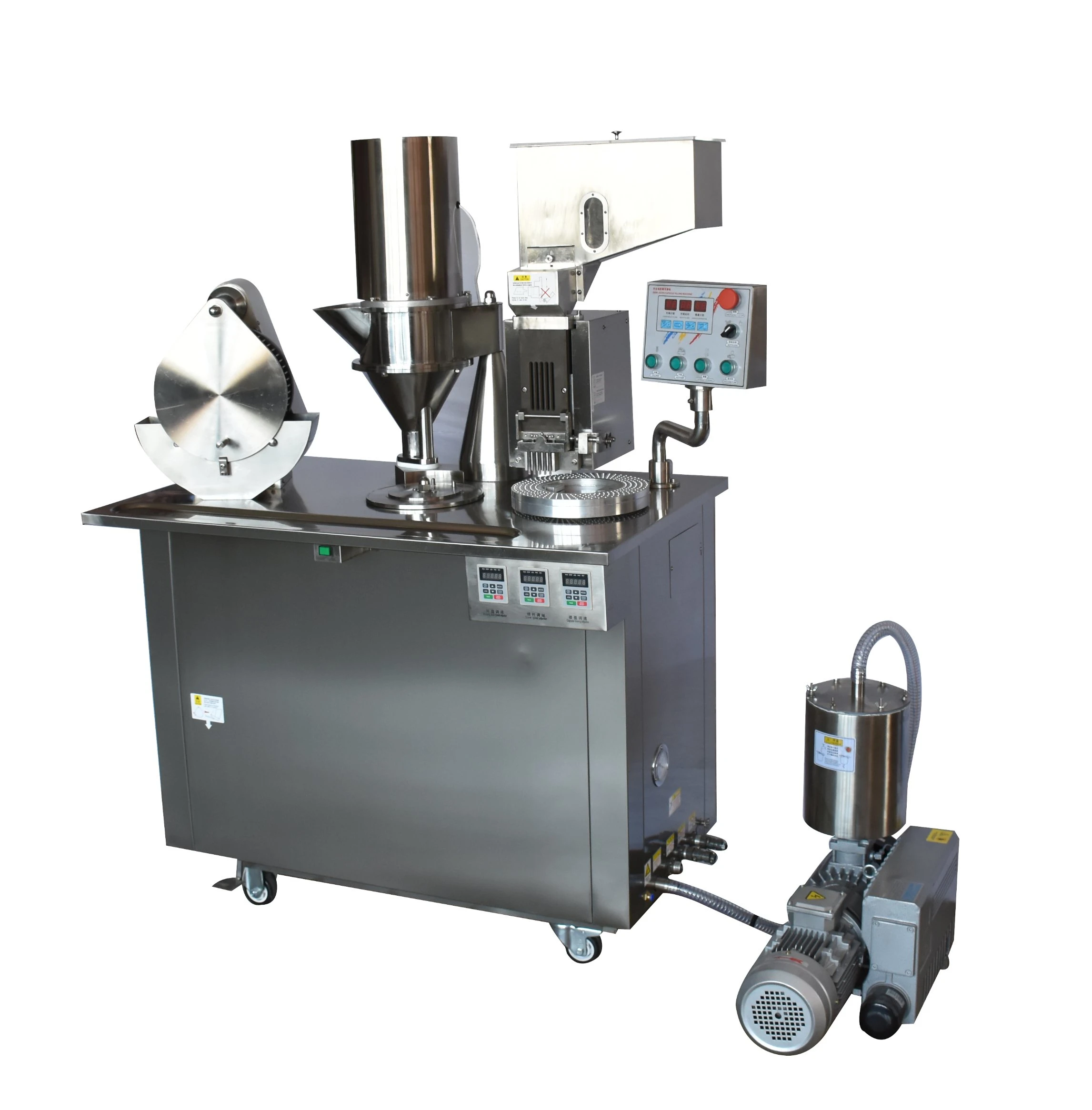

CGN208-D Automatic/High Productive Capsule Filler Capsule Filling Hard Capsule Machine
Description:
CGN208-D type capsule filling machine is a new efficient equipment based on DTJ-C model (old type) after research and development: easier more intuitive and higher loading in capsule dropping, U-turning, vacuum separation in comparison with the old type. The new type of capsule orientating adopts columns pill positioning design, which shortens the time in the replacement of mould from the original 30 minutes to 5-8 minutes. This machine is one type of electricity and pneumatic combined control, automatic counting electronics, programmable controller and frequency conversion speed regulating device. Instead of manual filling, it reduces labor intensity, which is the ideal equipment for capsule filling for small and medium-sized pharmaceutical companies, pharmaceutical research and development institutions and hospital preparation room.
Machine Specification:
| No. | Name | Detail |
| 1 | Change mold time | 5--10mins |
| 2 | Capacity | 2.5-30000 pcs/h |
| 3 | Capsule Size | 000#,00L,00#,,0L#,0#,1#,2#,3#,4#,5#, |
| 4 | Material | Pellet and powder |
| 5 | Total Power | 4.0kw |
| 6 | Air Compressor | 0.03m3/min 0.7Mpa |
| 7 | Vacuum Pump | 40m3/h |
| 8 | Machine Dimension | 1140×700×1630mm |
| 9 | Packing Dimension | 1172×870×1750mm |
| 11 | Net Weight | 380kg |
| 12 | Gross Weight | 500kg |
| 13 | Voltage | 380V/50Hz/3 Phase |
Other Products We Manufacture:
1. Paper Straw Making Machine
2. Blister Packing Machine
3. Automatic Cartoning Machine
4. Automatic oral/vial/ampoule Packing Production Line
5. Bundle machine
6. Blister-Card Packing Machine
7. Capsule Filling Machine
8. Soft Gel Encapsulation machine
9. Tablet Press Machine
10. Capsule/Tablet Counting Machine
11.Strip Packing Machine
12. Plastic Ampoule Filling and Sealing Machine
13. Sachet Filling and Sealing Machine
14. Tube Filling and Sealing Machine
15. Emulsifier Machine + tank
16. Labeling Machine
FAQ
Q1:Are you manufacturer or trading company?
A1: We are manufacturer with own factory and exporting department.
Q2: What's the lead time of your machine?
A2: Normally it's about 30~45 working days.
Q3: What's the payment terms?
A3: 30% deposit TT, 70% paid before shipment; or L/C, Western Union.
Q4: Can we check machine before order?
A4: Yes, welcome to visit our factory and check machine anytime.
Q5: Is it difficult to install the machine ?
Q5: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you
just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
Q6: Does the machine power voltage meet buyers' factory power source?
A6: We can do it as your request.
A1: We are manufacturer with own factory and exporting department.
Q2: What's the lead time of your machine?
A2: Normally it's about 30~45 working days.
Q3: What's the payment terms?
A3: 30% deposit TT, 70% paid before shipment; or L/C, Western Union.
Q4: Can we check machine before order?
A4: Yes, welcome to visit our factory and check machine anytime.
Q5: Is it difficult to install the machine ?
Q5: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you
just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
Q6: Does the machine power voltage meet buyers' factory power source?
A6: We can do it as your request.
